BUTTERFLY PNEUMATIC PACKAGES

8P023900

Butterfly valve "WAFER'' type PN 10, GG25 cast iron, CF8M disc, EPDM seat with actuator.

Technical specifications

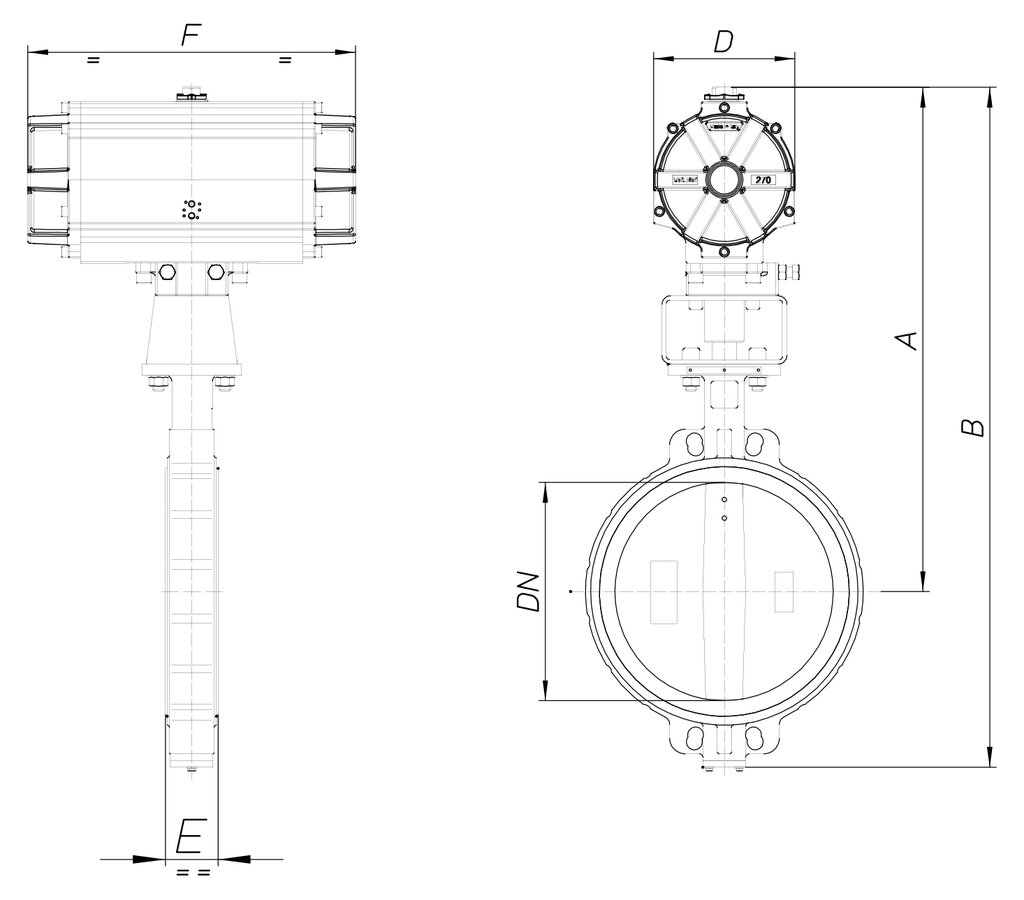

MOD	PN	A	B	D	E	F	ACT.	RI
8P02390097	10	709	968	186	80	500	DA 160	4236
8P02390098	10	798	1107	217	107	579	DA 200	4171
-	10	820	1147	217	119	579	DA 200	4171
8P02390099	10	908	1269	217	132	579	DA 200	4237
-	10	1111	1570	290	156	672	DA 270	4172
