CATALOGUE
/
ELECTRIC PACKAGES
/
2 WAY ELECTRIC PACKAGES
/
8M009
2 WAY ELECTRIC PACKAGES

8M009

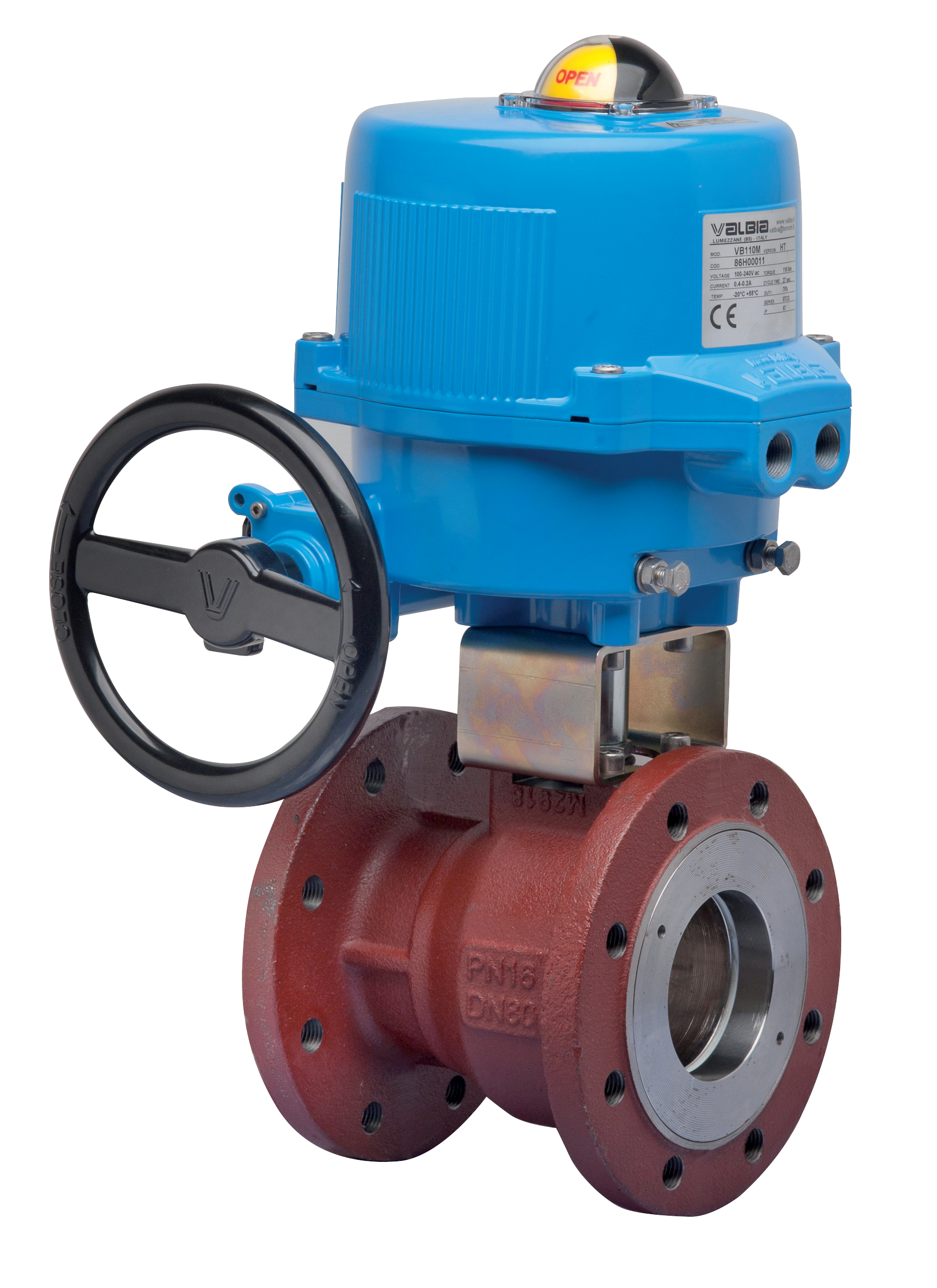

2 way flanged PN16 ball valve [Valpres artt. 730008 from DN25 to DN65 - 730003 from DN80 to DN200] cast iron, with ball and stem in stainless steel AISI 304, full bore, face to face to EN558 basic series 14 (DN200 basic series 27).

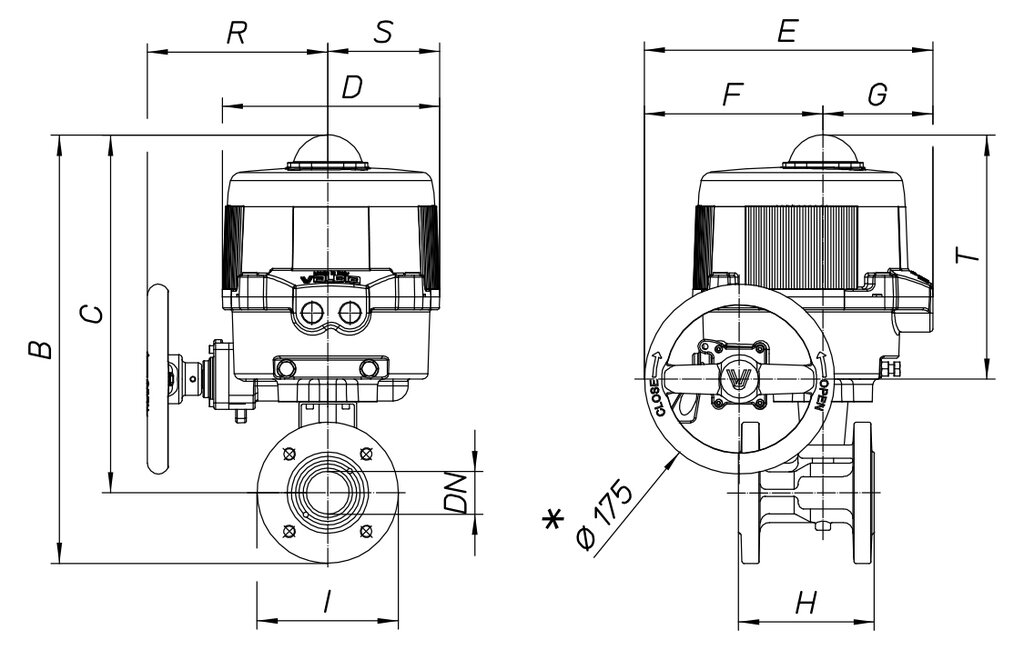

Technical specifications
MOD PN B C D E F G H I R S T ACT. KIT
8M00900106 16 346 289 161 187 63 124 125 115 - - - VB 030M RI3001
8M00900206 16 346 289 161 187 63 124 125 115 - - - VB 030M RI3001
8M00900406 16 346 289 161 187 63 124 125 115 - - - VB 030M RI3001
8M00900107 16 365 295 161 187 63 124 130 140 - - - VB 030M RI3001
8M00900207 16 365 295 161 187 63 124 130 140 - - - VB 030M RI3001
8M00900407 16 365 295 161 187 63 124 130 140 - - - VB 030M RI3001
8M00900108 16 406 334 176 197 63 134 140 150 - - - VB 060M RI3002
8M00900208 16 406 334 176 197 63 134 140 150 - - - VB 060M RI3002
8M00900408 16 406 334 176 197 63 134 140 150 - - - VB 060M RI3002
8M00900110 16 424 341 176 197 63 134 150 165 - - - VB 060M RI3002
8M00900210 16 424 341 176 197 63 134 150 165 - - - VB 060M RI3002
8M00900410 16 424 341 176 197 63 134 150 165 - - - VB 060M RI3002
8M00900112 16 474 381 200 266 165 101 170 185 167 103 225 VB 110M RI3003
8M00900212 16 474 381 200 266 165 101 170 185 167 103 225 VB 110M RI3003
8M00900412 16 474 381 200 266 165 101 170 185 167 103 225 VB 110M RI3003
8M00900114 16 492 392 200 266 165 101 180 200 167 103 225 VB 110M RI3003
8M00900214 16 492 392 200 266 165 101 180 200 167 103 225 VB 110M RI3003
8M00900414 16 492 392 200 266 165 101 180 200 167 103 225 VB 110M RI3003
8M00900118 16 541 431 200 266 165 101 190 220 167 103 225 VB 190M RI3004
8M00900218 16 541 431 200 266 165 101 190 220 167 103 225 VB 190M RI3004
8M00900418 16 541 431 200 266 165 101 190 220 167 103 225 VB 190M RI3004
8M00900119 16 578 453 200 266 165 101 200 250 167 103 225 VB 190M RI3004
8M00900219 16 578 453 200 266 165 101 200 250 167 103 225 VB 190M RI3004
8M00900419 16 578 453 200 266 165 101 200 250 167 103 225 VB 190M RI3004
8M00900120 16 620 477 212 279 184 95 210 285 166 109 226 VB 350M RI3006
8M00900220 16 620 477 212 279 184 95 210 285 166 109 226 VB 350M RI3006
8M00900420 16 620 477 212 279 184 95 210 285 166 109 226 VB 350M RI3006
