ELECTRIC PACKAGES
/
2 WAY ELECTRIC PACKAGES
/
8M053
2 WAY ELECTRIC PACKAGES

8M053

Split body [Valpres art. 760000] full bore flanged PN16 ball valve, stainless steel AISI 316 CF8M, Fire Safe, Antistatic Device , face to face EN558 basic series 27, classified ATEX Ex II 2 G/D c T3.

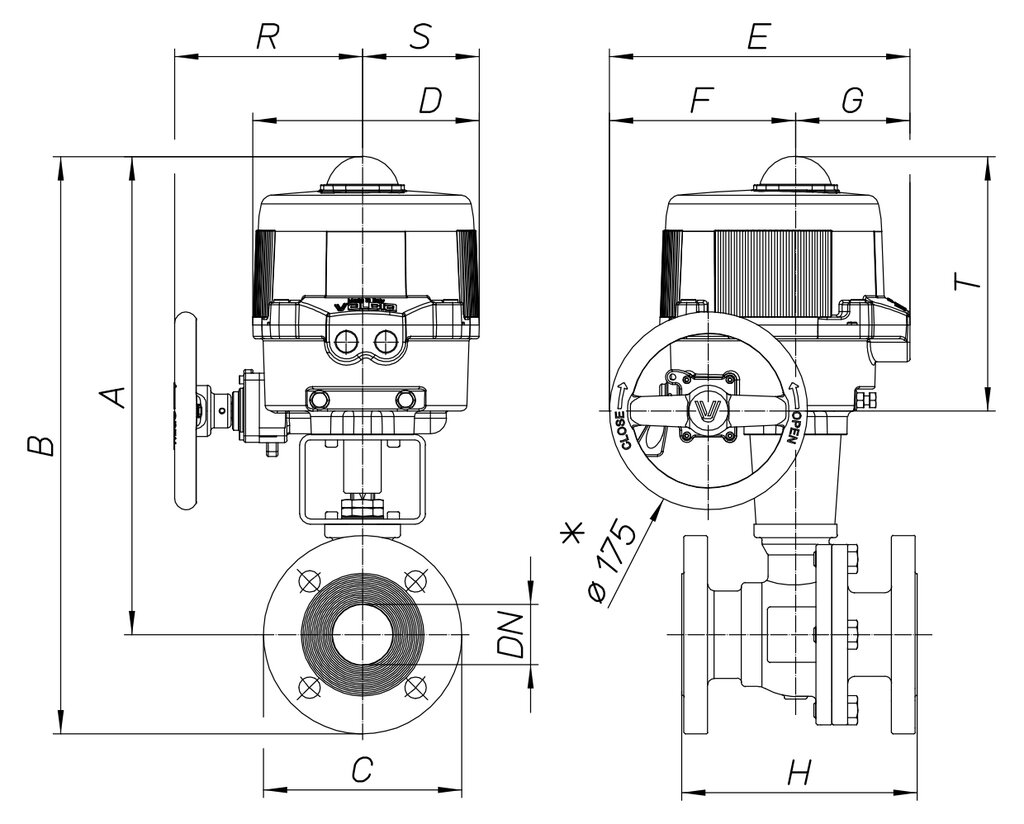

Technical specifications
MOD PN A B C D E F G H R S T ACT. KIT
8M05300106 40 305 362 115 161 187 63 124 125 - - - VB 030M RI3520
8M05300206 40 305 362 115 161 187 63 124 125 - - - VB 030M RI3520
8M05300406 40 305 362 115 161 187 63 124 125 - - - VB 030M RI3520
8M05300107 40 329 399 140 176 197 63 134 130 - - - VB 060M RI3525
8M05300207 40 329 399 140 176 197 63 134 130 - - - VB 060M RI3525
8M05300407 40 329 399 140 176 197 63 134 130 - - - VB 060M RI3525
8M05300108 40 357 432 150 176 197 63 134 140 - - - VB 060M RI3521
8M05300208 40 357 432 150 176 197 63 134 140 - - - VB 060M RI3521
8M05300408 40 357 432 150 176 197 63 134 140 - - - VB 060M RI3521
8M05300110 40 364 446 165 176 197 63 134 150 - - - VB 060M RI4039
8M05300210 40 364 446 165 176 197 63 134 150 - - - VB 060M RI4039
8M05300410 40 364 446 165 176 197 63 134 150 - - - VB 060M RI4039
8M05300112 16 400 492 185 200 266 165 101 170 167 103 225 VB 110M RI3522
8M05300212 16 400 492 185 200 266 165 101 170 167 103 225 VB 110M RI3522
8M05300412 16 400 492 185 200 266 165 101 170 167 103 225 VB 110M RI3522
8M05300114 16 434 534 200 200 266 165 101 180 167 103 225 VB 110M RI3523
8M05300214 16 434 534 200 200 266 165 101 180 167 103 225 VB 110M RI3523
8M05300414 16 434 534 200 200 266 165 101 180 167 103 225 VB 110M RI3523
8M05300118 16 448 558 220 200 266 165 101 190 167 103 225 VB 190M RI3552
8M05300218 16 448 558 220 200 266 165 101 190 167 103 225 VB 190M RI3552
8M05300418 16 448 558 220 200 266 165 101 190 167 103 225 VB 190M RI3552
8M05300119 16 472 597 250 212 279 184 95 325 166 109 226 VB 270M RI3528
8M05300219 16 472 597 250 212 279 184 95 325 166 109 226 VB 270M RI3528
8M05300419 16 472 597 250 212 279 184 95 325 166 109 226 VB 270M RI3528
8M05300120 16 504 647 285 212 279 184 95 350 166 109 226 VB 350M RI3553
8M05300220 16 504 647 285 212 279 184 95 350 166 109 226 VB 350M RI3553
8M05300420 16 504 647 285 212 279 184 95 350 166 109 226 VB 350M RI3553
