8M022
3 WAY ELECTRIC PACKAGES

8M022

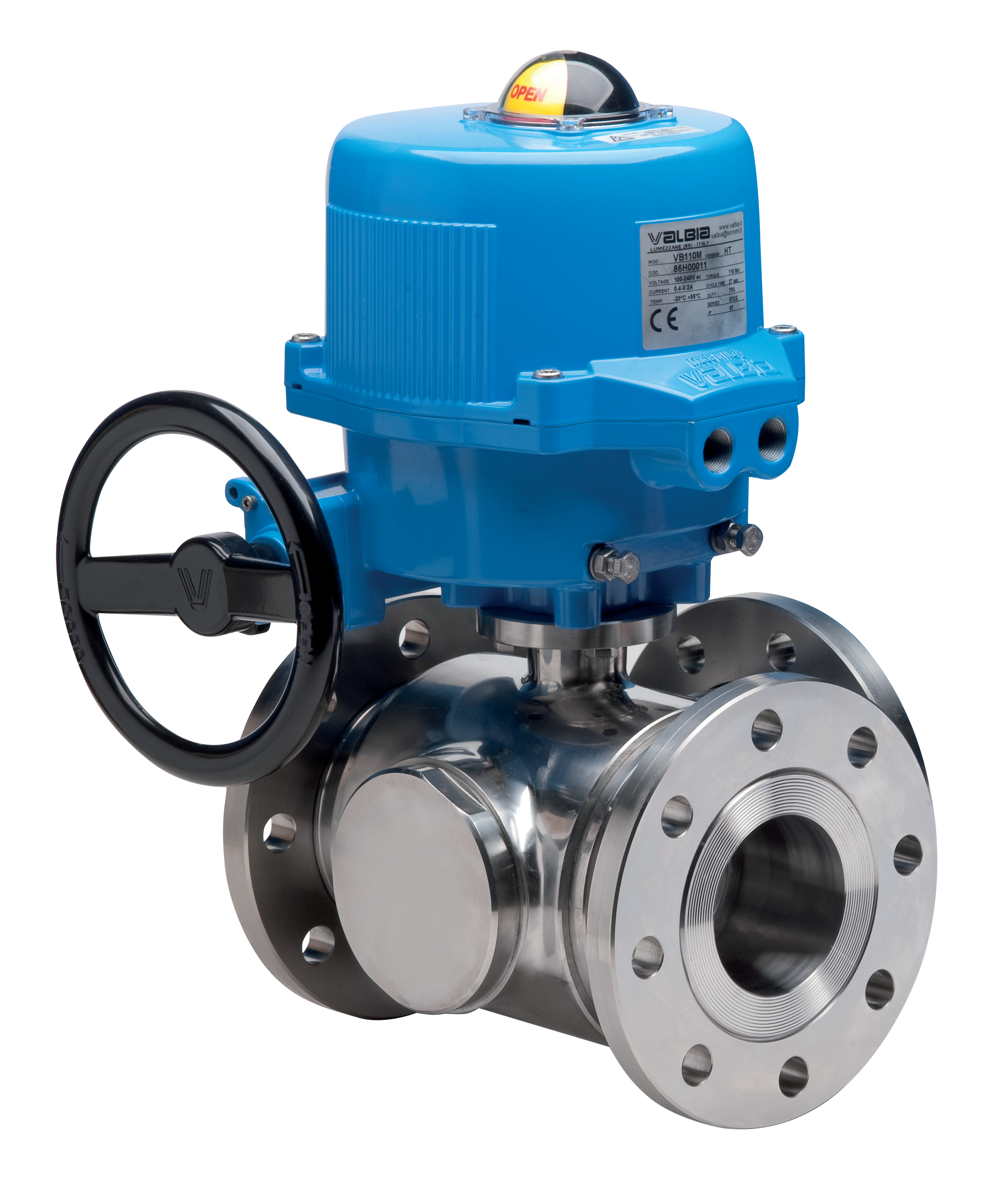

3 way flanged polished ball valve, from ingot, 4 seals, stainless steel AISI 316, full bore, T or L port.
Technical specifications
MOD PN B C D E F G H I R S T ACT.
8M02200105 40 309 256 161 187 63 124 140 70 - - - VB 030M*
8M02200205 40 309 256 161 187 63 124 140 70 - - - VB 030M*
8M02200405 40 309 256 161 187 63 124 140 70 - - - VB 030M*
8M02200106 40 318 260 161 187 63 124 150 75 - - - VB 030M*
8M02200206 40 318 260 161 187 63 124 150 75 - - - VB 030M*
8M02200406 40 318 260 161 187 63 124 150 75 - - - VB 030M*
8M02200107 40 372 302 176 197 63 134 180 90 - - - VB 060M
8M02200207 40 372 302 176 197 63 134 180 90 - - - VB 060M
8M02200407 40 372 302 176 197 63 134 180 90 - - - VB 060M
8M02200108 40 384 309 176 197 63 134 200 100 - - - VB 060M
8M02200208 40 384 309 176 197 63 134 200 100 - - - VB 060M
8M02200408 40 384 309 176 197 63 134 200 100 - - - VB 060M
8M02200110 25 395 312 176 197 63 134 220 110 - - - VB 060M*
8M02200210 25 395 312 176 197 63 134 220 110 - - - VB 060M*
8M02200410 25 395 312 176 197 63 134 220 110 - - - VB 060M*
8M02200112 16 441 348 200 266 165 101 240 120 167 103 225 VB 110M
8M02200212 16 441 348 200 266 165 101 240 120 167 103 225 VB 110M
8M02200412 16 441 348 200 266 165 101 240 120 167 103 225 VB 110M
8M02200114 16 462 362 00 266 165 101 260 130 167 103 225 VB 190M
8M02200214 16 462 362 00 266 165 101 260 130 167 103 225 VB 190M
8M02200414 16 462 362 00 266 165 101 260 130 167 103 225 VB 190M
8M02200118 16 488 378 212 279 184 95 300 150 166 109 226 VB 350M
8M02200218 16 488 378 212 279 184 95 300 150 166 109 226 VB 350M
8M02200418 16 488 378 212 279 184 95 300 150 166 109 226 VB 350M
