8M123
3 WAY ELECTRIC PACKAGES

8M123

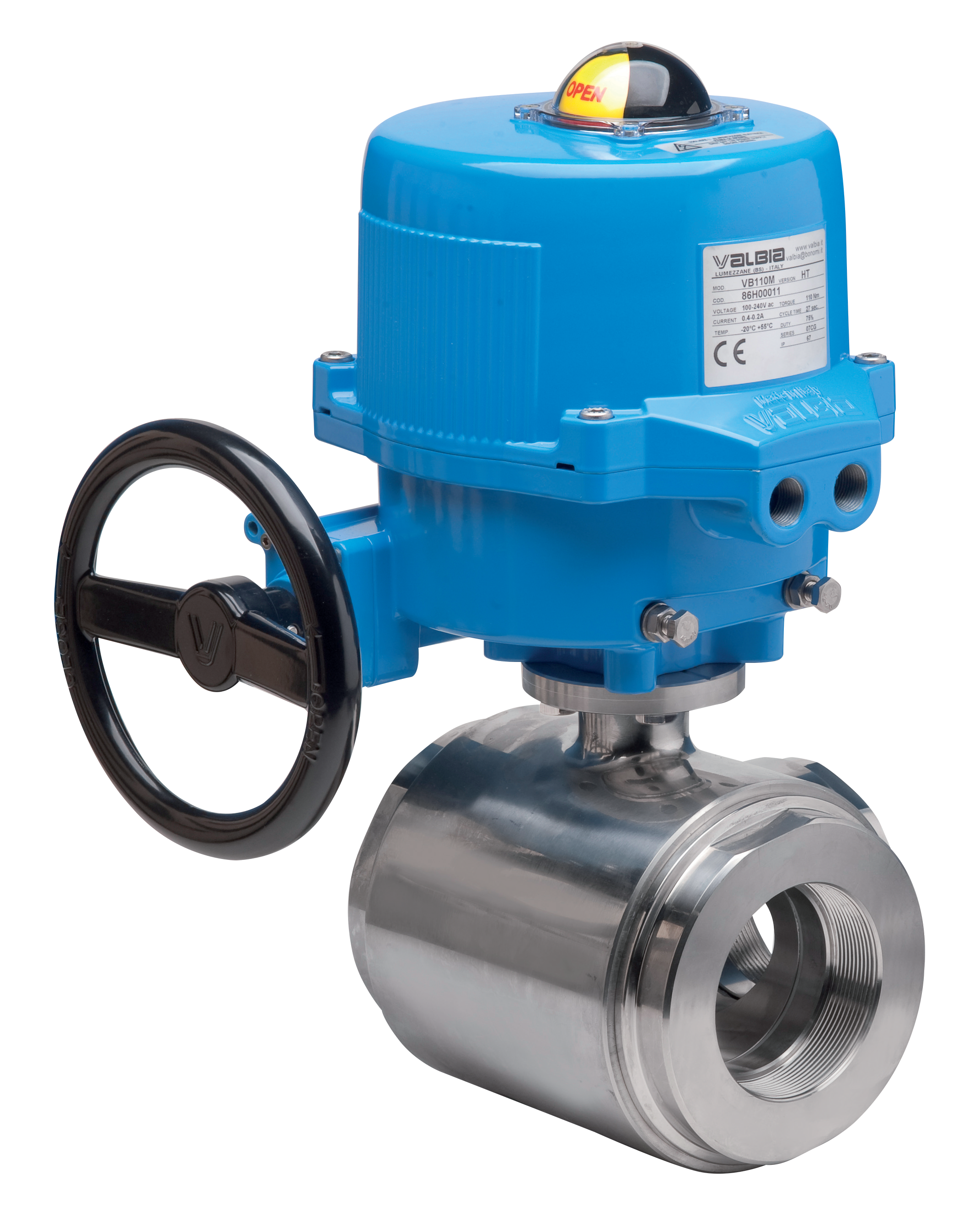

Deviator 3 way ball valve diverting, from ingot, 2 P.T.F.E. seals, AISI 316, polished, ISO 228 F/F/F threaded L port.

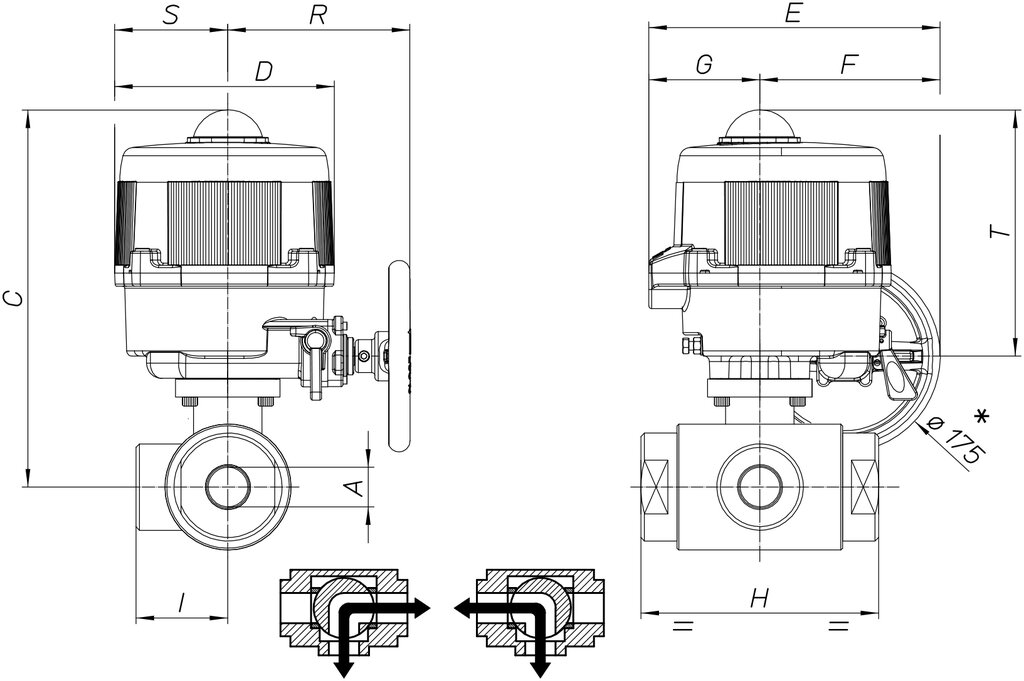

Technical specifications
MOD PN C D E F G H I R S T ACT.
8M12300105 40 256 161 187 63 124 92 46 - - - VB030M*
8M12300205 40 256 161 187 63 124 92 46 - - - VB030M*
8M12300405 40 256 161 187 63 124 92 46 - - - VB030M*
8M12300106 40 260 161 187 63 124 102 51 - - - VB030M*
8M12300206 40 260 161 187 63 124 102 51 - - - VB030M*
8M12300406 40 260 161 187 63 124 102 51 - - - VB030M*
8M12300107 25 302 176 197 63 134 134 67 - - - VB060M
8M12300207 25 302 176 197 63 134 134 67 - - - VB060M
8M12300407 25 302 176 197 63 134 134 67 - - - VB060M
8M12300108 25 309 176 196 63 134 144 72 - - - VB060M
8M12300208 25 309 176 196 63 134 144 72 - - - VB060M
8M12300408 25 309 176 196 63 134 144 72 - - - VB060M
8M12300110 25 312 176 197 63 134 144 72 - - - VB060M*
8M12300210 25 312 176 197 63 134 144 72 - - - VB060M*
8M12300410 25 312 176 197 63 134 144 72 - - - VB060M*
8M12300112 25 322 176 197 63 134 160 80 - - - VB060M*
8M12300212 25 322 176 197 63 134 160 80 - - - VB060M*
8M12300412 25 322 176 197 63 134 160 80 - - - VB060M*
8M12300114 16 362 200 266 165 101 200 100 167 103 225 VB110M
8M12300214 16 362 200 266 165 101 200 100 167 103 225 VB110M
8M12300414 16 362 200 266 165 101 200 100 167 103 225 VB110M
8M12300118 16 377 200 266 165 101 240 120 167 103 225 VB110M
8M12300218 16 377 200 266 165 101 240 120 167 103 225 VB110M
8M12300418 16 377 200 266 165 101 240 120 167 103 225 VB110M
