2 WAY PNEUMATIC PACKAGES

8P000400

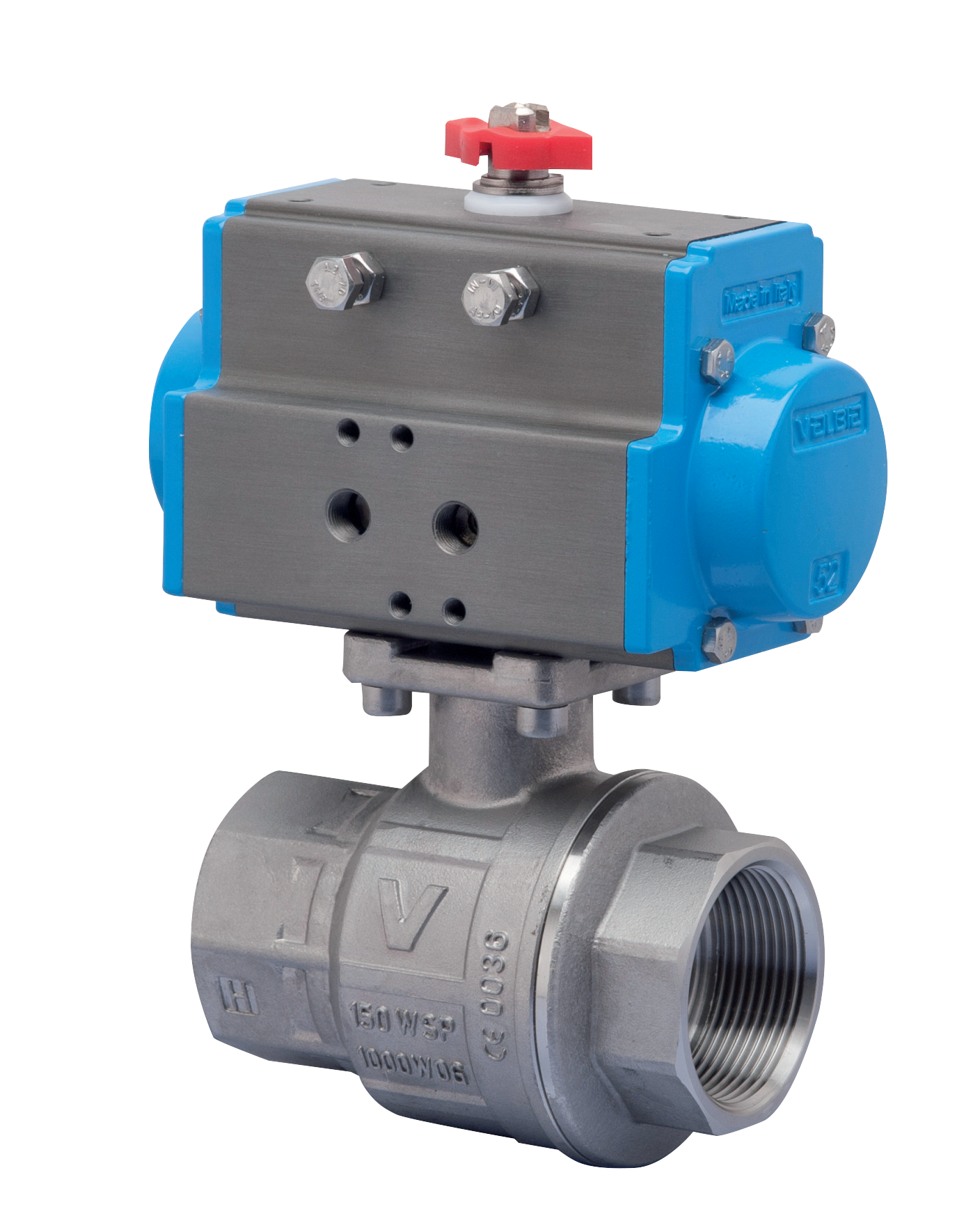

2-way ball valve [Valpres Art. 703000], stainless steel AISI 316, threaded F/F, antistatic device with actuator. Not suitable for use with solvents.

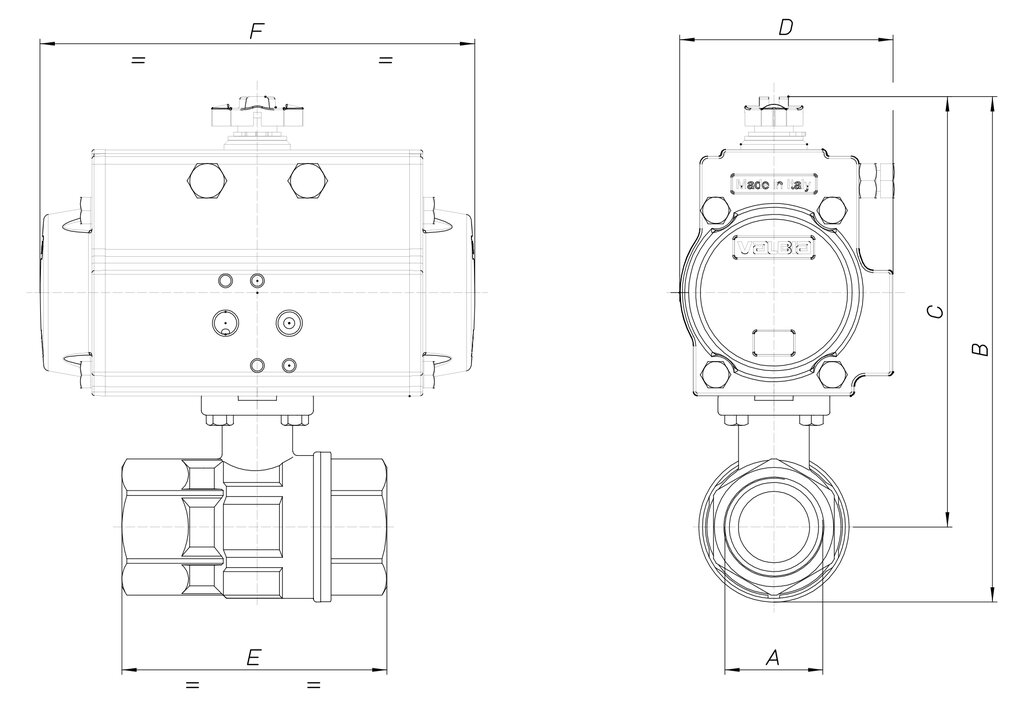

Technical specifications

MOD	PN	A	B	C	D	E	F	ACT.	RI
8P00040004	64	1/2''	152	134	71	67	141	SR 52	4017
8P00040005	64	3/4''	157	136	71	78	141	SR 52	4017
8P00040006	64	1''	172	146	71	90	141	SR 52	4017
8P00040007	64	1''1/4	182	150	71	100	141	SR 52	4017
8P00040008	64	1''1/2	215	177	81	112	164	SR 63	4018
8P00040010	64	2''	235	186	81	135	164	SR 63	4018
8P00040012	25	2"1/2	314	252	123	160	275	SR 100	5342
8P00040014	25	3"	333	260	123	180	275	SR 100	5031
