HIGH PRESSURE

8P015500

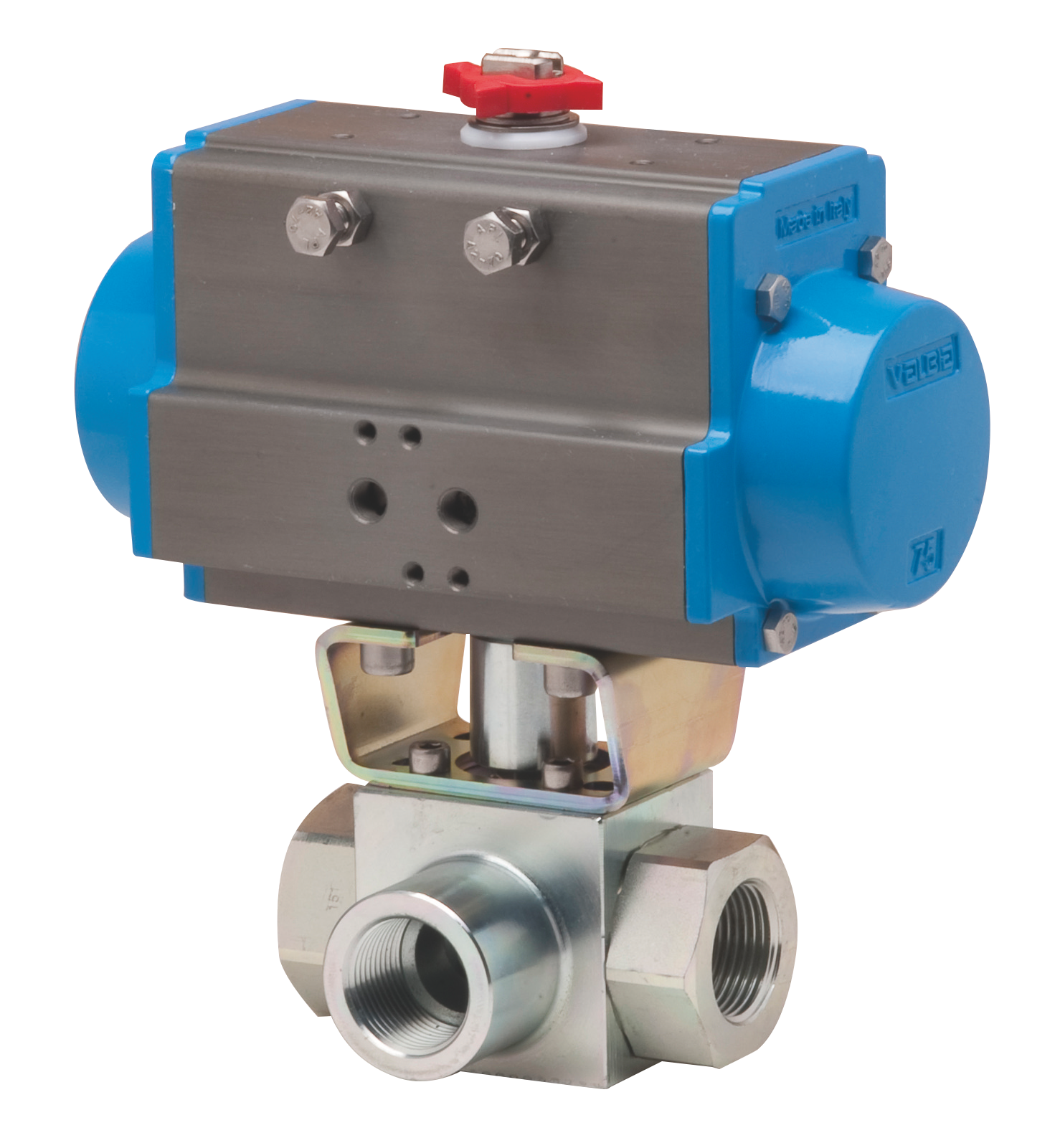

3 ways ball valve, 9SMnPb36, L or T port, diverting only, F/F/F threaded, for high pressure, with actuator. For Hydraulic oil, emulsion, gas. For particular applications, refer to Valbia.

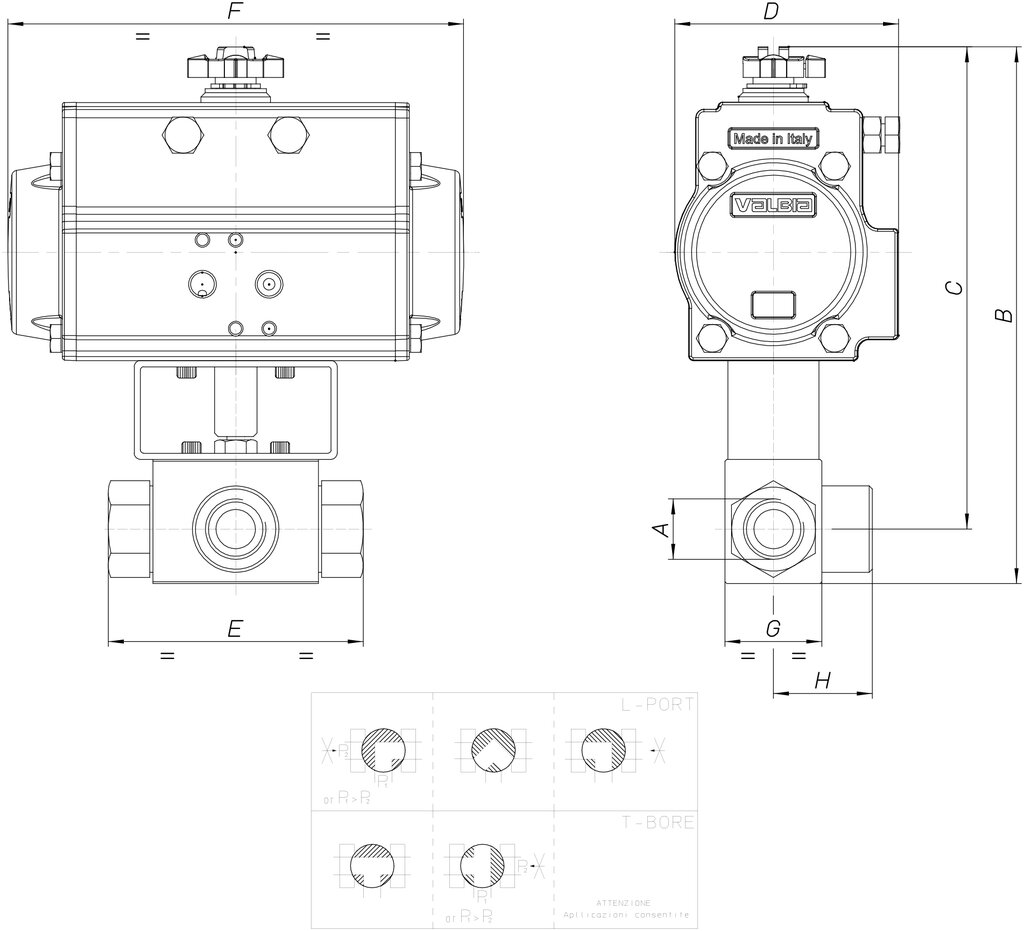

Technical specifications

MOD	PN	A	B	C	D	E	F	G	H	ACT.	RI
8P01550003	400	3/8''	211	194	95	73	210	35	37	SR 75	3745
8P01550004	350	1/2''	214	196	95	83	210	37	40	SR 75	3745
8P01550005	350	3/4''	253	230	123	95	275	45	52	SR 100	3742
8P01550006	350	1''	263	234	123	112	275	55	60	SR 100	3742
