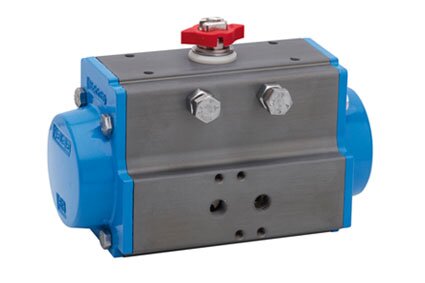

Especificaciones técnicas
Posición Nombre de la pieza Material Treatment N.° piezas
1 Body Extruded aluminium Hard anodized 1
2 Anti-blowout pinion Steel Nichelato - Nickel plated 1
• 3 O-ring NBR/SILICONE/FKM - 1
• 4 Spacer ring POM/AMODEL/STANYL/PEEK - 1
• 5 O-ring NBR/SILICONE/FKM - 1
• 6 O-ring NBR/SILICONE/FKM - 1
7 Cam Stainless steel - 1
8 Spacer POM - 1
• 9 Spacer POM - 1
10 Washer Stainless steel - 1
**11 Snap ring Steel Nickel plated 1
12 Piston Die cast aluminium - 2
• 13 O-ring NBR/SILICONE/FKM - 2
• 14 Antifriction ring POM/AMODEL/STANYL/PTFE/MINLON/PEEK - 2
• 15 Thrust block POM-AMODEL-STANYL-DELRIN+MOS2/PEEK - 2 [4]
16 Stop bolt retaining nut Stainless steel - 2
17 Stop bolt Stainless steel - 2
18 External spring Steel Painted See spring setting
***19 Central spring Steel Painted See spring setting
20 Internal spring Steel Painted See spring setting
21 Left end cap Die cast aluminium Painted 1
22 Right end cap Die cast aluminium Painted 1
23 End cap seats NBR/SANTOPRENE/SILICONE/FKM/ME0020-70 - 2
24 O-ring NBR/SILICONE/FKM - 2
25 End cap fixing screw Stainless steel - 8
26 Position indicator Gomma termoplastica TPEThermoplastic rubber TPE - 1
MOD FORATURA DRILLING ISO 5211 CH A B C D E F G H Ø I ØK L M N O P Q R S T ISO 7/1 U øV
MOD. 125 F07 - F10 22 372 148 68 80 174,4 30 204,4 22 49 32 80/130 30 24 61 102 70 M8X12 M10X15 1/4” 64 44

• Parts subject to wear

* * Reinforcedseries DIN 471-UNI 7436 Valid for mod. 140-160-180-200-230 only.

* * * Only for mod. 160-180-200. Only square connection at 45°
