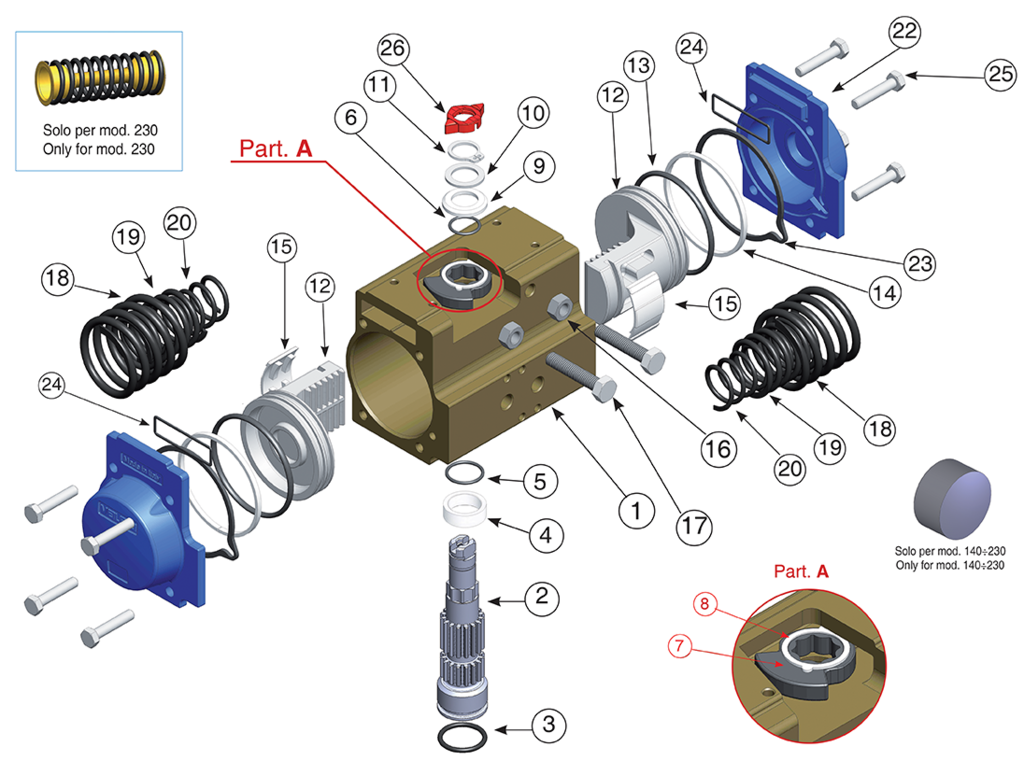

| Posición | Nombre de la pieza | Material | Treatment | N.° piezas |
|---|---|---|---|---|
| 1 | Body | Extruded aluminium | Hard anodized | 1 |
| 2 | Anti-blowout pinion | Steel | Nichelato - Nickel plated | 1 |
| • 3 | O-ring | NBR/SILICONE/FKM | - | 1 |
| • 4 | Spacer ring | POM/AMODEL/STANYL/PEEK | - | 1 |
| • 5 | O-ring | NBR/SILICONE/FKM | - | 1 |
| • 6 | O-ring | NBR/SILICONE/FKM | - | 1 |
| 7 | Cam | Stainless steel | - | 1 |
| 8 | Spacer | POM/MINLON/PTFE/PEEK | - | 1 |
| • 9 | Spacer | POM/MINLON/PTFE/PEEK | - | 1 |
| 10 | Washer | Stainless steel | - | 1 |
| **11 | Snap ring | Steel | Nickel plated | 1 |
| 12 | Piston | Die cast aluminium | - | 2 |
| • 13 | O-ring | NBR/SILICONE/FKM | - | 2 |
| • 14 | Antifriction ring | POM/AMODEL/STANYL/PTFE/MINLON/PEEK | - | 2 |
| • 15 | Thrust block | POM-AMODEL-STANYL-DELRIN+MOS2/PEEK | - | 2 [4] |
| 16 | Stop bolt retaining nut | Stainless steel | - | 2 |
| 17 | Stop bolt | Stainless steel | - | 2 |
| 18 | External spring | Steel | Painted | See spring setting |
| ***19 | Central spring | Steel | Painted | See spring setting |
| 20 | Internal spring | Steel | Painted | See spring setting |
| 21 | Left end cap | Die cast aluminium | Painted | 1 |
| 22 | Right end cap | Die cast aluminium | Painted | 1 |
| 23 | End cap seats | NBR/SANTOPRENE/SILICONE/FKM/ME0020-70 | - | 2 |
| 24 | O-ring | NBR/SILICONE/FKM | - | 2 |
| 25 | End cap fixing screw | Stainless steel | - | 8 |
| 26 | Position indicator | Gomma termoplastica TPEThermoplastic rubber TPE | - | 1 |
• Parts subject to wear
* * Reinforcedseries DIN 471-UNI 7436 Valid for mod. 140-160-180-200-230 only.
* * * Only for mod. 160-180-200. Only square connection at 45°

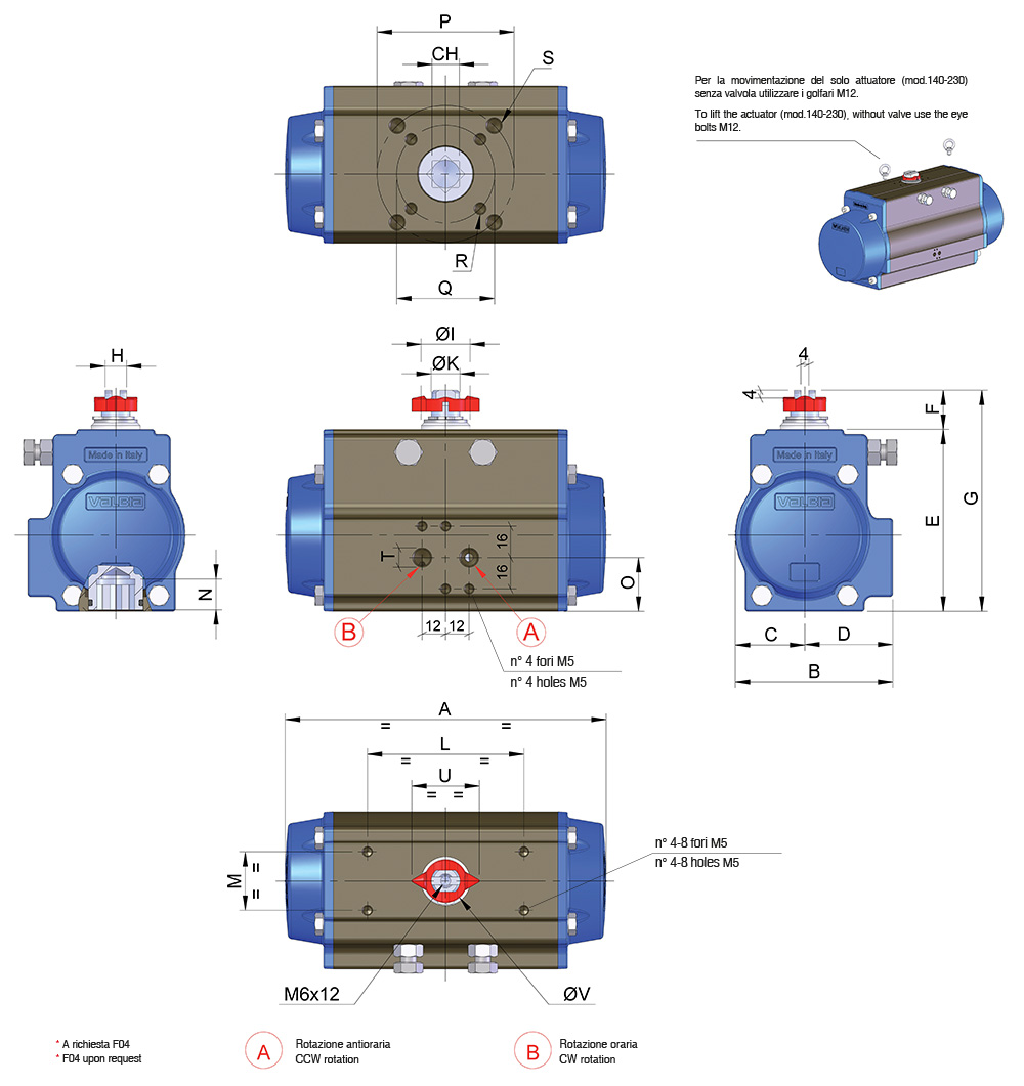

| MOD | FORATURA DRILLING ISO 5211 | CH | A | B | C | D | E | F | G | H | Ø I | ØK | L | M | N | O | P | Q | R | S | T ISO 7/1 | U | øV |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MOD. 140 | F10 - F12 | 27 | 435 | 164 | 76,5 | 87,5 | 197 | 30 | 227 | 24 | 49 | 35 | 80/130 | 30 | 29 | 71 | 125 | 102 | M10X15 | M12X18 | 1/4” | 64 | 44 |
