CATALOGUE
/
ELECTRIC PACKAGES
/
2 WAY ELECTRIC PACKAGES
/
8M048
2 WAY ELECTRIC PACKAGES

8M048

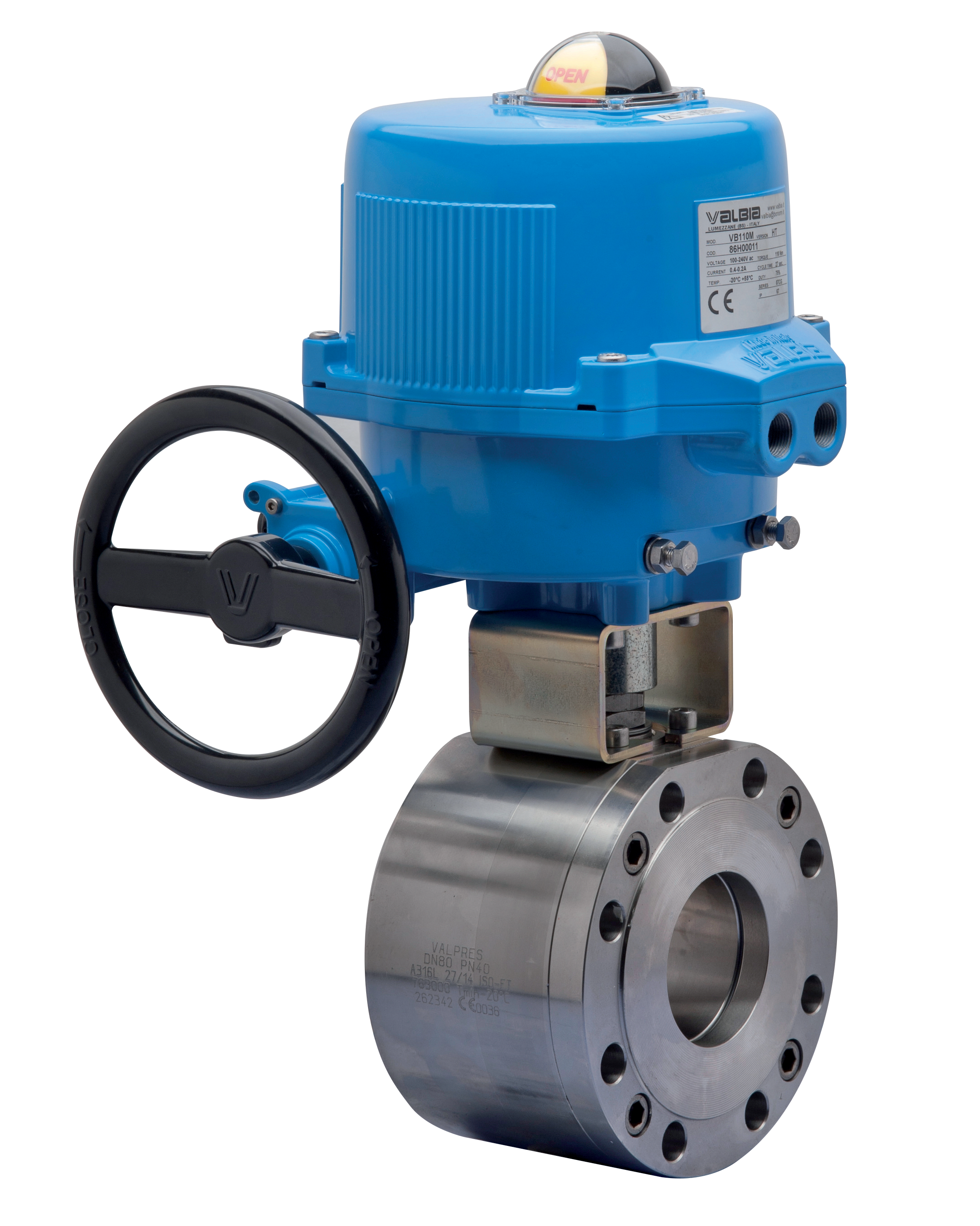

Wafer Split full bore PN16 flanged ball valve [Valpres art. 763000] stainless steel AISI 316, Fire Safe, Antistatic Device.
Technical specifications
MOD PN A B C D E F G H R S T ACT. KIT
8M04800106 40 296 351 110 161 187 63 124 57 - - - VB 030M RI3542
8M04800206 40 296 351 110 161 187 63 124 57 - - - VB 030M RI3542
8M04800406 40 296 351 110 161 187 63 124 57 - - - VB 030M RI3542
8M04800107 40 302 367 130 161 187 63 124 65 - - - VB 030M RI4271
8M04800207 40 302 367 130 161 187 63 124 65 - - - VB 030M RI4271
8M04800407 40 302 367 130 161 187 63 124 65 - - - VB 030M RI4271
8M04800108 40 342 412 140 176 197 63 134 79 - - - VB 060M RI3521
8M04800208 40 342 412 140 176 197 63 134 79 - - - VB 060M RI3521
8M04800408 40 342 412 140 176 197 63 134 79 - - - VB 060M RI3521
8M04800110 40 351 426 150 176 197 63 134 84 - - - VB 060M RI3521
8M04800210 40 351 426 150 176 197 63 134 84 - - - VB 060M RI3521
8M04800410 40 351 426 150 176 197 63 134 84 - - - VB 060M RI3521
8M04800112 16 390 480 180 200 266 165 101 103 167 103 255 VB 110M RI3545
8M04800212 16 390 480 180 200 266 165 101 103 167 103 255 VB 110M RI3545
8M04800412 16 390 480 180 200 266 165 101 103 167 103 255 VB 110M RI3545
8M04800114 16 396 491 190 200 266 165 101 122 167 103 255 VB 110M RI3546
8M04800214 16 396 491 190 200 266 165 101 122 167 103 255 VB 110M RI3546
8M04800414 16 396 491 190 200 266 165 101 122 167 103 255 VB 110M RI3546
8M04800118 16 429 539 220 200 266 165 101 155 167 103 255 VB 190M RI3552
8M04800218 16 429 539 220 200 266 165 101 155 167 103 255 VB 190M RI3552
8M04800418 16 429 539 220 200 266 165 101 155 167 103 255 VB 190M RI3552
