CATALOGUE
/
PNEUMATIC PACKAGES
/
2 WAY PNEUMATIC PACKAGES
/
8P090500
2 WAY PNEUMATIC PACKAGES
8P090500
2 way Wafer ball valve [Valpres art. 723100] flanged ANSI 150, stainless steel CF8M, full bore, antistatic device, ISO 5211 pad direct.

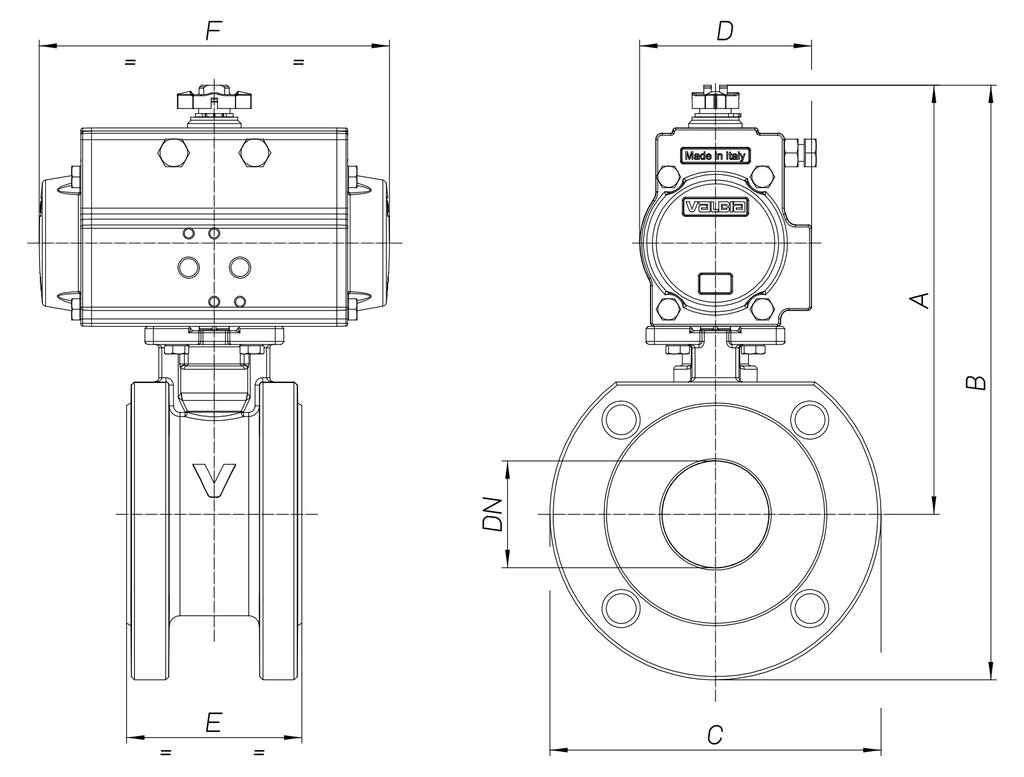

Technical specifications
MOD
PN
A
B
C
D
E
F
ACT.
RI
8P09050006
20
161
216
110
71
48
141
DA 52
5161
8P09050007
20
174
239
130
71
54
141
DA 52
5161
8P09050008
20
182
252
140
71
64
141
DA 52
5163
8P09050010
20
201
279
155
81
82
164
DA 63
5165
8P09050012
20
226
316
180
81
103
164
DA 63
5259
8P09050014
20
251
346
190
95
122
210
DA 75
5166
8P09050018
20
280
390
220
106
152
241
DA 85
5166
