CATALOGUE
/
PNEUMATIC PACKAGES
/
3 WAY PNEUMATIC PACKAGES
/
8P005500
3 WAY PNEUMATIC PACKAGES
8P005500

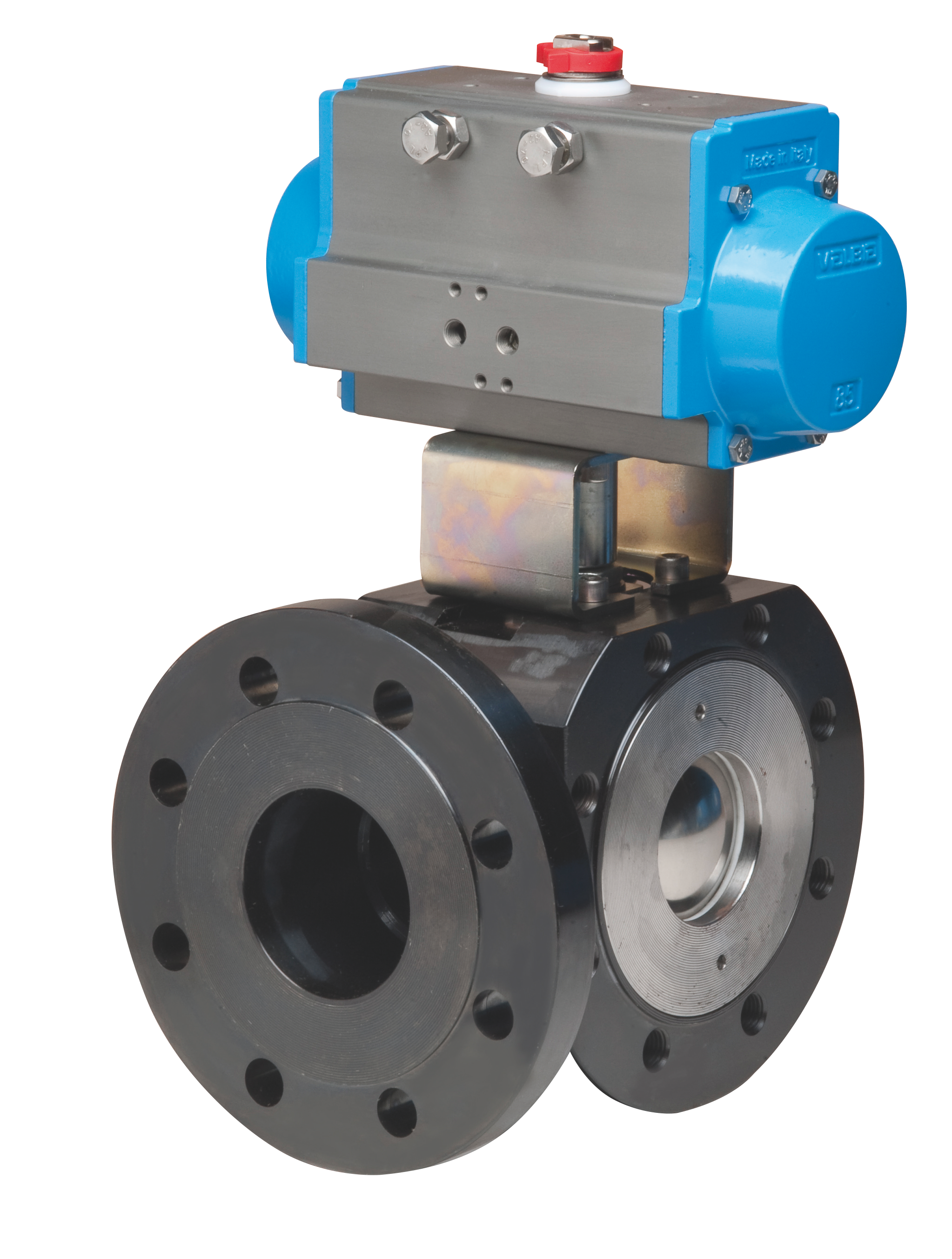

3 way ''WAFER'' ball valve (diverting), [Valpres Artt. 776000 (L) - 776001 (T)], ''L'' or ''T'' port, two seats, flanged PN16, in carbon steel ASTM A105, REDUCED bore, with actuator.
Technical specifications
MOD
PN
A
B
Ø C
D
E
F
Ø G
H
ACT.
RI
8P00550004
16
147
191
89
45
40
110
95
76
DA 32
3012
8P00550005
16
189
239
99
71
40
141
105
82
DA 52
3013
8P00550006
16
193
248
109
71
46
141
115
86
DA 52
3001
8P00550007
16
200
265
130
71
58
141
140
105
DA 52
3008
8P00550008
16
227
297
140
81
71
164
150
110
DA 63
3002
8P00550010
16
251
331
160
95
82
210
165
120
DA 75
3009
8P00550012
16
282
372
180
106
106
241
185
125
DA 85
3003
8P00550014
16
290
390
200
106
122
241
200
150
DA 85
3003
8P00550018
16
340
450
220
123
152
275
220
159
DA 100
3004
8P00550019
16
363
488
250
123
196
275
250
190
DA 100
4558
8P00550020
16
427
580
306
148
242
372
285
210
DA 125
3042
