PNEUMATIC PACKAGES
/
3 WAY PNEUMATIC PACKAGES
/
8P015100
3 WAY PNEUMATIC PACKAGES
8P015100

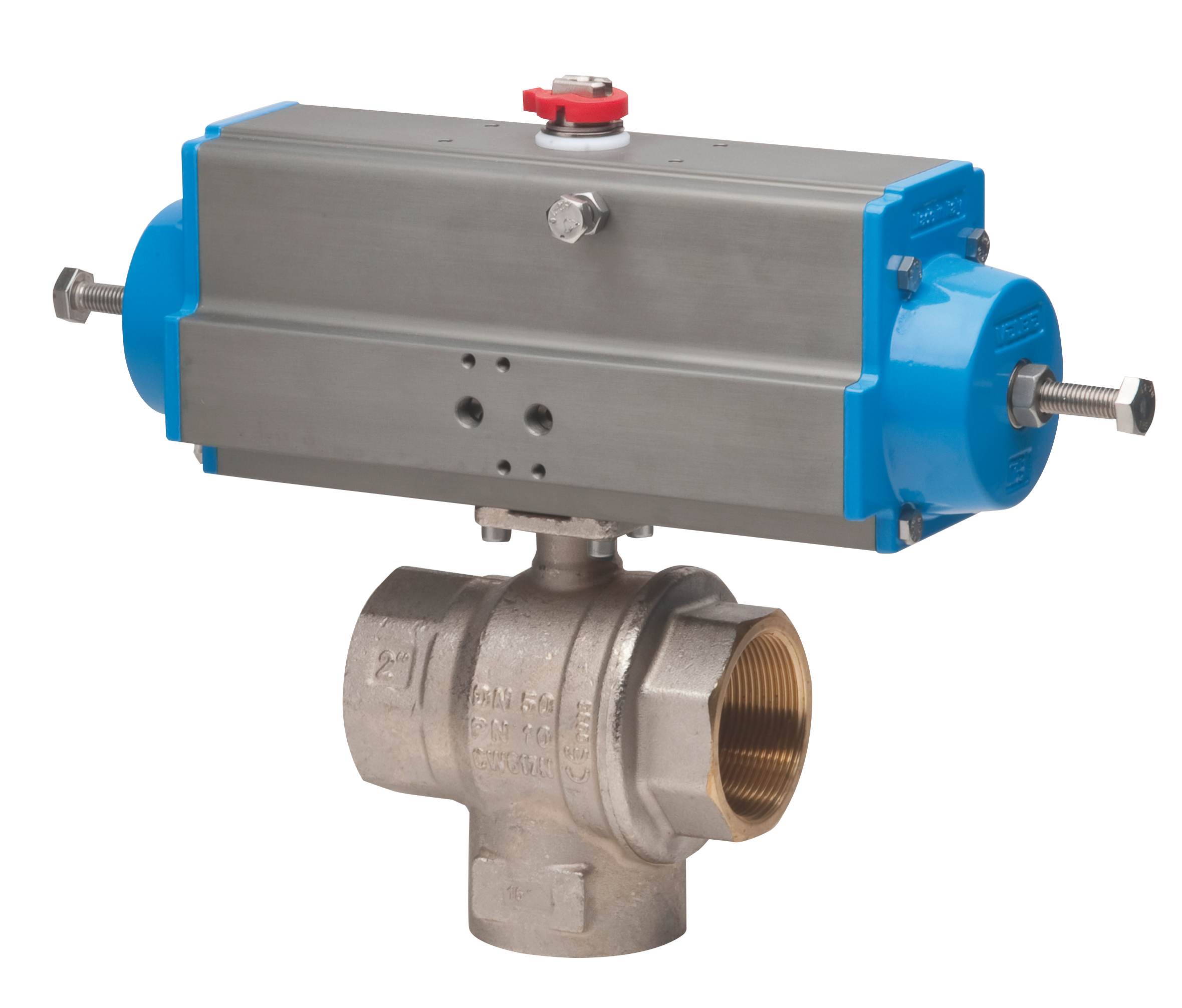

Diverter brass CW617N ball valve [RB Art. 3210 (L)], full bore, female threaded, ''L'' port, with actuator rotation 0°-180°.

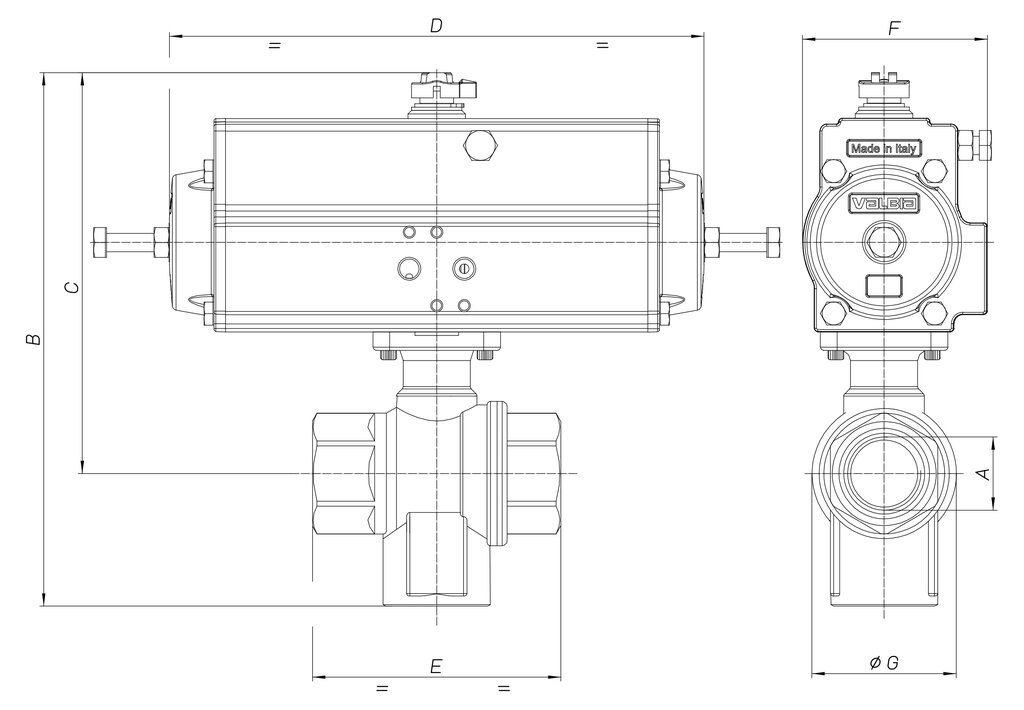

Technical specifications
MOD
PN
A
B
C
D
E
F
G
ACT.
RI
8P01510002
25
1/4''
156
130
197
52
71
28
DA 52
4017
8P01510003
25
3/8''
156
130
197
52
71
28
DA 52
4017
8P01510004
25
1/2''
167
133
197
64
71
35
DA 52
4017
8P01510005
16
3/4''
184
144
197
74
71
43
DA 52
4017
8P01510006
16
1''
194
147
197
89
71
53
DA 52
4017
8P01510007
10
1''1/4
206
151
197
100
71
63
DA 52
4017
8P01510008
10
1''1/2
225
163
197
110
71
77
DA 52
4016
8P01510010
10
2''
253
180
233
130
81
93
DA 63
4018
