CATALOGUE
/
PNEUMATIC PACKAGES
/
3 WAY PNEUMATIC PACKAGES
/
8P016700
3 WAY PNEUMATIC PACKAGES
8P016700

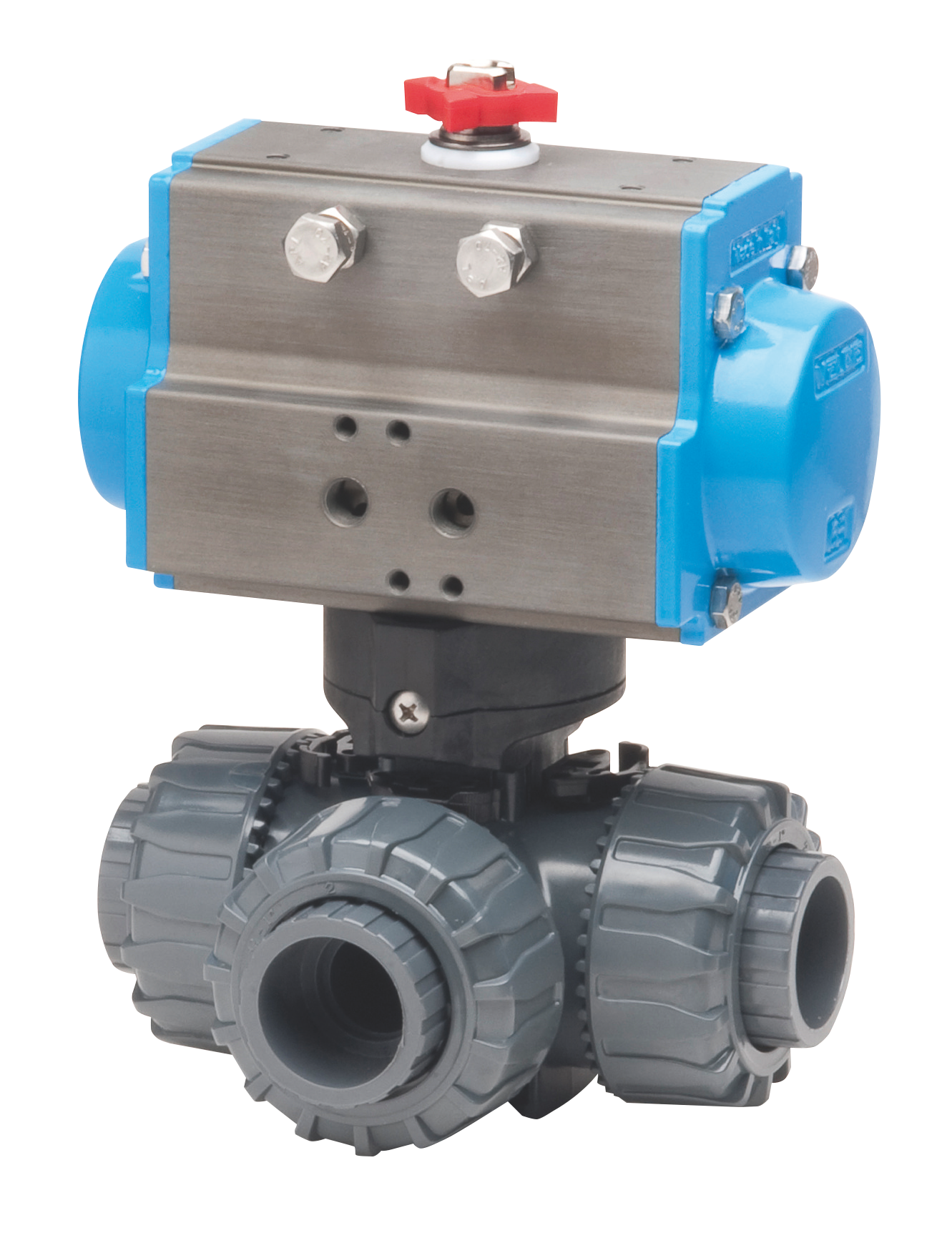

3 way PVC ball valve, ''T'' or ''L'' port, with metric series plain female ends for solvent welding, with actuator.

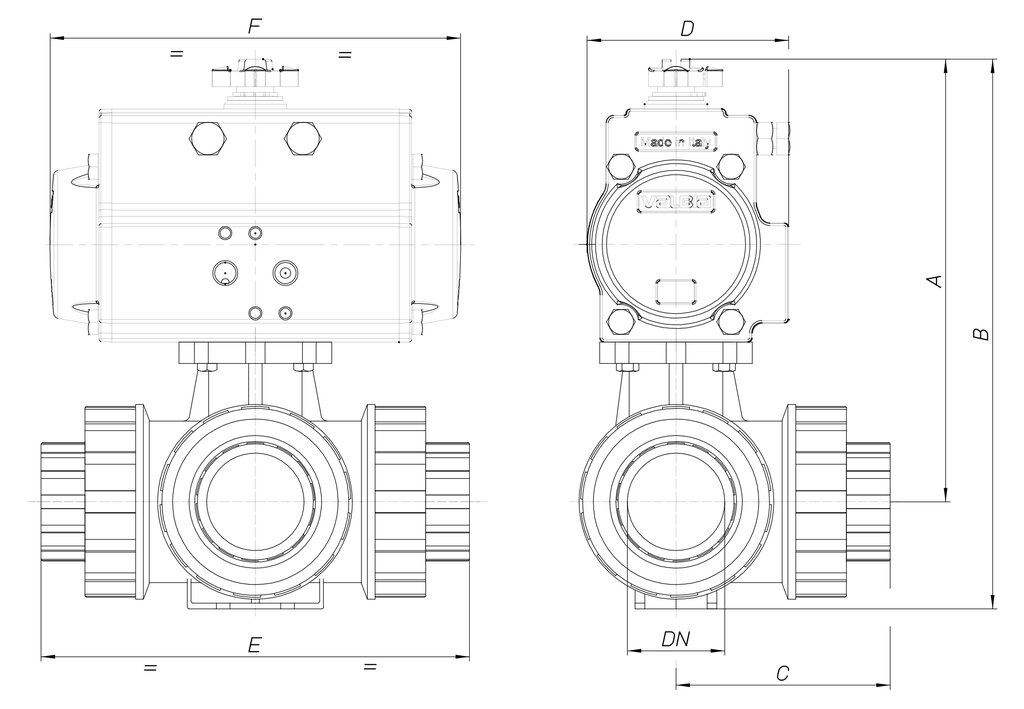

Technical specifications
MOD
PN
A
B
C
D
E
F
ACT.
8P01670004
16
160
189
59
71
118
141
DA 52
8P01670005
16
182
217
73
81
145
164
DA 63
8P01670006
16
187
226
80
81
160
164
DA 63
8P01670007
16
204
250
95
81
189
164
DA 63
8P01670008
16
210
262
110
81
219
164
DA63
8P01670010
16
227
289
134
81
267
164
DA 63
