BUTTERFLY PNEUMATIC PACKAGES
8P021100
Brass butterfly valve full port [RB Art. 600000], trhreaded F/F, with actuator.

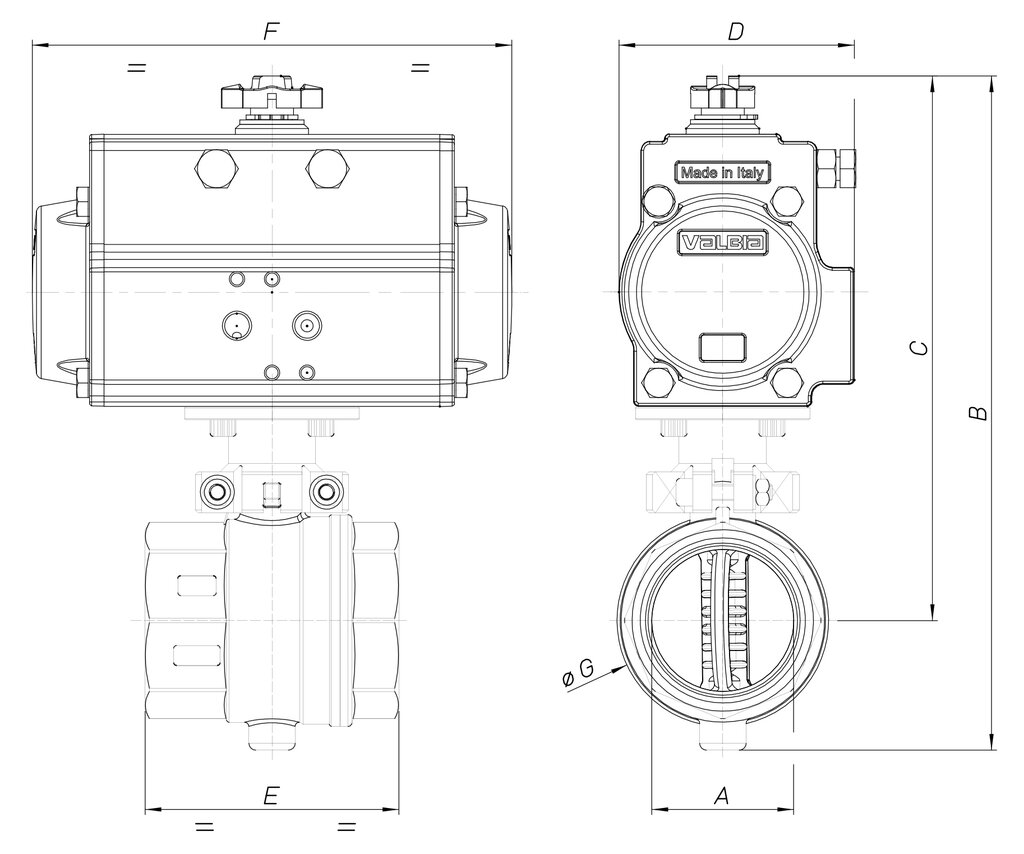

Technical specifications
MOD
PN
A
B
C
D
E
F
ØG
ACT.
RI
8P02110004
16
1/2''
144
124
45
49
110
31
DA 32
3752
8P02110005
16
3/4''
151
128
45
56
110
38
DA 32
3752
8P02110006
16
1''
158
131
45
64
110
46
DA 32
3752
8P02110007
16
1''1/4
201
167
71
76
141
56
DA52
3825
8P02110008
16
1''1/2
213
172
71
82
141
66
DA 52
3825
8P02110010
16
2''
240
192
81
93
164
78
DA 63
3208
8P02110012
16
2''1/2
276
213
81
112
164
102
DA 63
3835
8P02110014
16
3''
317
242
95
130
210
122
DA 75
3826
