CATALOGUE
/
PNEUMATIC PACKAGES
/
BUTTERFLY PNEUMATIC PACKAGES
/
8P025900
BUTTERFLY PNEUMATIC PACKAGES
8P025900

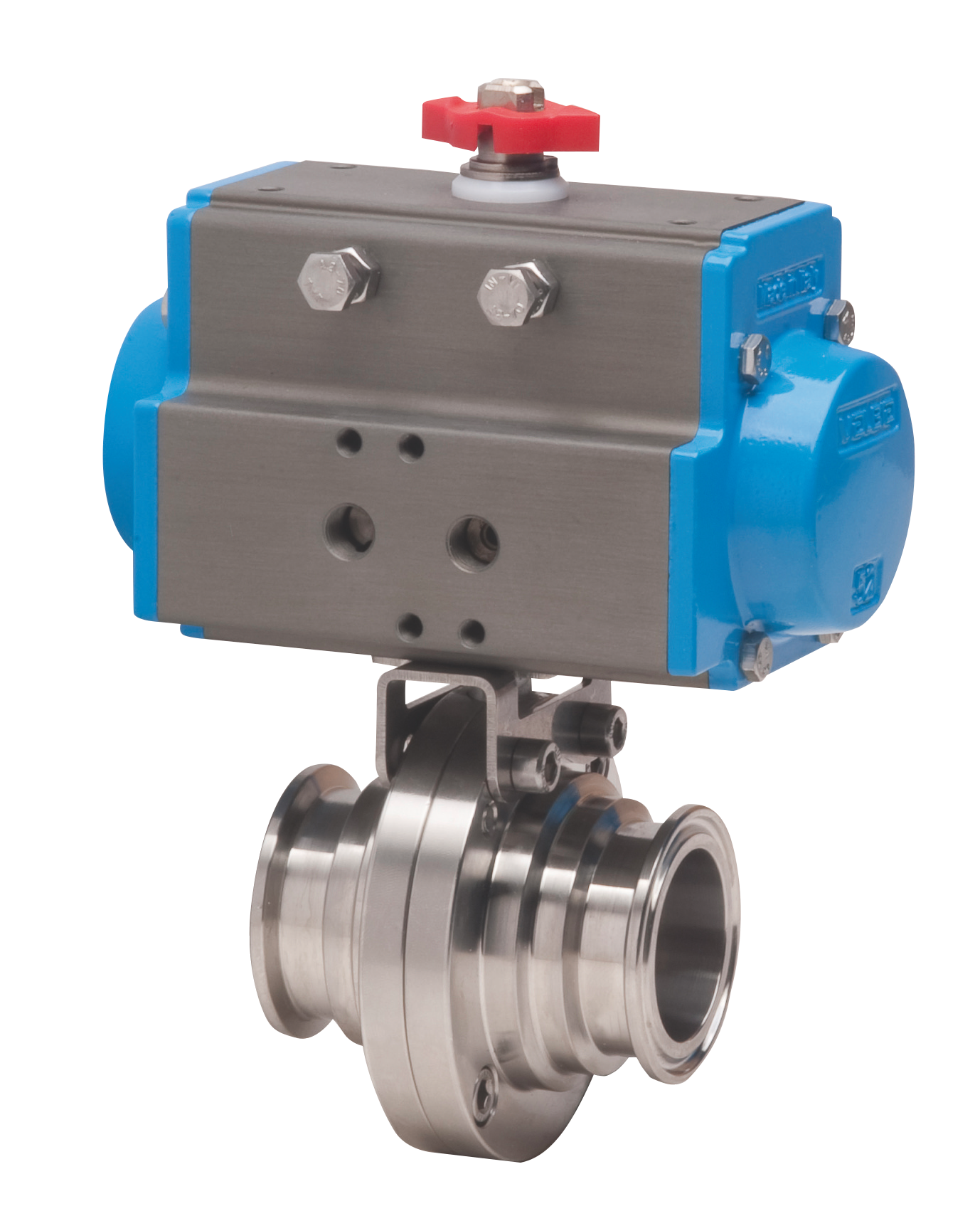

Butterfly valve, BS4825 clamp connections, stainless steel AISI 304.

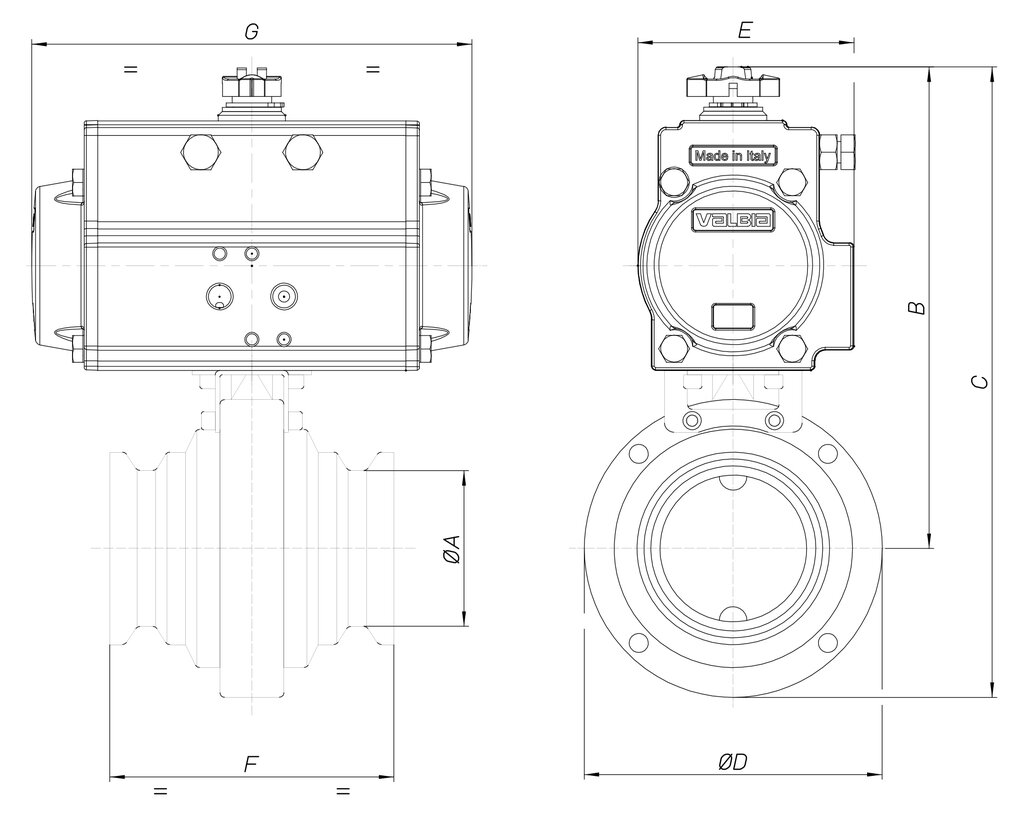

Technical specifications
MOD
PN
ØA
B
C
ØD
E
F
G
ACT.
8P02590005
6
19
113
138
50
45
58
110
DA 32
8P02590006
6
25
113
153
79
45
68
110
DA 32
8P02590008
6
38
155
197
85
71
76
141
DA 52
8P02590010
6
51
174
227
105
81
80
164
DA 63
8P02590012
6
63
197
254
113
95
82
210
DA 75
8P02590014
6
76
202
265
125
95
82
210
DA 75
8P02590018
6
101
223
302
157
106
88
241
DA 85
