| Position | Nom de la pièce | Matériel | Treatment | N.° pièces |
|---|---|---|---|---|
| 1 | Body | Stainless steel | Hard anodized | 1 |
| 2 | Anti-blowout pinion | Stainless steel | - | 1 |
| • 3 | O-ring | NBR/SILICONE/FKM | - | 1 |
| • 4 | Spacer ring | POM-AMODEL-STANYL | - | 1 |
| • 5 | O-ring | NBR/SILICONE/FKM | - | 1 |
| • 6 | O-ring | NBR/SILICONE/FKM | - | 1 |
| 7 | Cam | Stainless steel | - | 1 |
| 8 | Spacer | POM-MINLON | - | 1 |
| • 9 | Spacer | POM-MINLON | - | 1 |
| 10 | Washer | Stainless steel | - | 1 |
| 11 | Snap ring | Stainless steel | - | 1 |
| 12 | Piston | Die cast aluminium | Hard anodized | 2 |
| • 13 | O-ring | NBR/SILICONE/FKM | - | 2 |
| • 14 | Antifriction ring | POM-AMODEL-STANYL-PTFE | - | 2 |
| • 15 | Thrust block | POM-AMODEL-STANYL | - | 2 |
| 16 | Stop bolt retaining nut | Stainless steel | - | 2 |
| 17 | Stop bolt | Stainless steel | - | 2 |

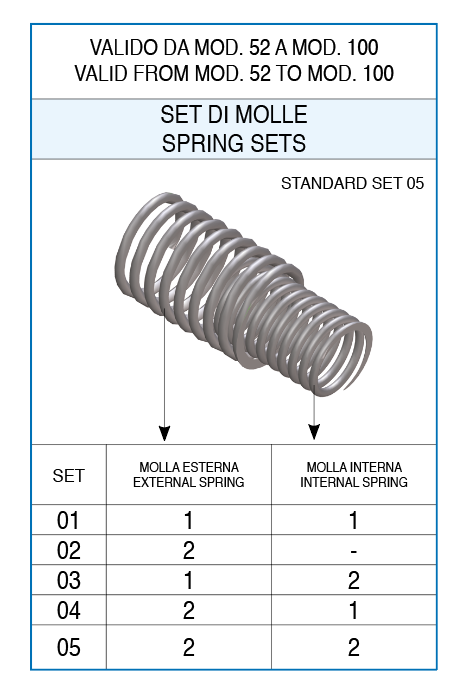

| 18 | External spring | Acciaio-steel | Powder coating (bonderizing) | See spring setting |
| 19 | Internal spring | Acciaio-Steel | Powder coating (bonderizing) | See spring setting |
| 20 | Left end cap | Stainless steel | - | 1 |
| 21 | Right end cap | Stainless steel | - | 1 |
| 22 | End cap seats | NBR/SANTOPRENE/SILICONE/FKM/ME0020-70 | - | 2 |
| 23 | End cap seats | NBR/SANTOPRENE/SILICONE/FKM/ME0020-70 | - | 2 |
| 24 | End cap fixing screw | Stainless steel | - | 8 |
| 25 | Position indicator | Gomma termoplastica TPEThermoplastic rubber TPE | - | 1 |
• Parts subject to wear
| MOD | FORATURA DRILLING ISO 5211 | CH | A | B | C | D | E | F | G | H | Ø I | ØK | L | M | N | O | P | Q | R | S | T ISO 7/1 | U | ØV |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MOD. 52 | F03-F05 | 11 | 141 | 71 | 30 | 41 | 85,5 | 20 | 105,5 | 10 | 21 | 12 | 80 | 30 | 12 | 26,5 | 50 | 36 | M5X7,5 | M6X9 | 1/8" | 34,5 | 22 |
